Home >> Products >>Series of Spring vibration isolator >> V-type suspension spring Vibration isolator
Product Detail

V-type suspension spring Vibration isolator

DETAILS

V-type suspension spring Vibration isolator

In construction and other industries, many equipment or pipelines need to be hoisted, and there are many cases where equipment or pipelines are affected by vibrations that affect the environment or external vibrations affect equipment. V lifting type is a product developed according to user needs and actual needs of engineering equipment lifting. The product has the characteristics of a large damping ratio, low natural frequency, convenient installation, and excellent noise reduction effect on solid sound transmission. It is universally applicable to the lifting of various large and small equipment and pipelines.


Product video

Our services

1. SERVICE TENET: fast, decisive, accurate, thoughtful and thorough.

2. Service goal: Service quality is to win customer satisfaction.

3. Service efficiency: If the equipment fails during the warranty period or outside the warranty period, the supplier after receiving the notice will send professional technical service personnel to the site within 24 hours (48 hours outside the province) if it needs to be resolved on the spot.

4. SERVICE PRINCIPLE: Product Warranty period is 12 months during which we implement "three guarantees"service(return, replacement, maintenance).

5. The company provides free training and technical guidance services for customers so as to help them have a deeper understanding of our products and thus relieve your worries.

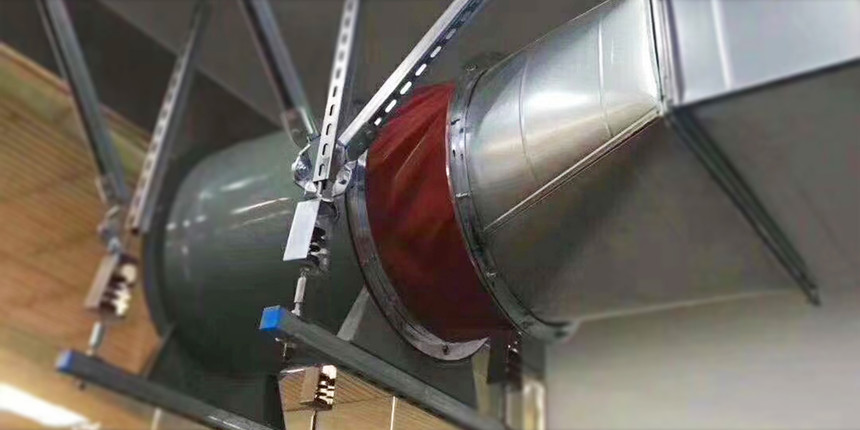

Product Installation


Product Parameters

Model NumberDimensionLoad RangeCoefficient of elasticity(Kg/mm)Applicable deflection(mm)
LL1AHH1MD
V-5102773580308103-50.225
V-106-100.425
V-1510-150.625
V-2515-250.925
V-301301003510040101020-301.225
V-5030-50225
V-7050-802.825
V-901821516014040121480-1003.625
V-120100-1304.825
V-150130-150625
V-180150-1807.225
V-250200-2501025
V-300260-3001225
V-350300-3501425
V-400360-4001625

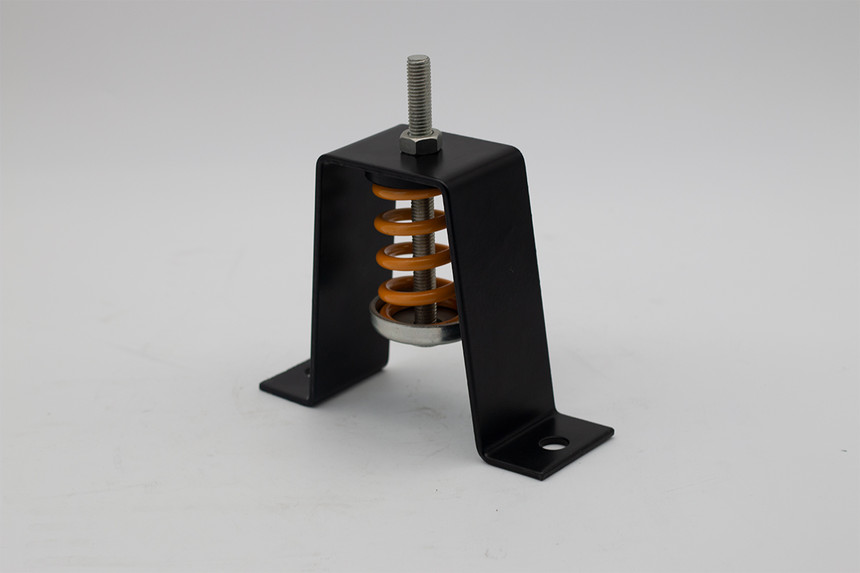

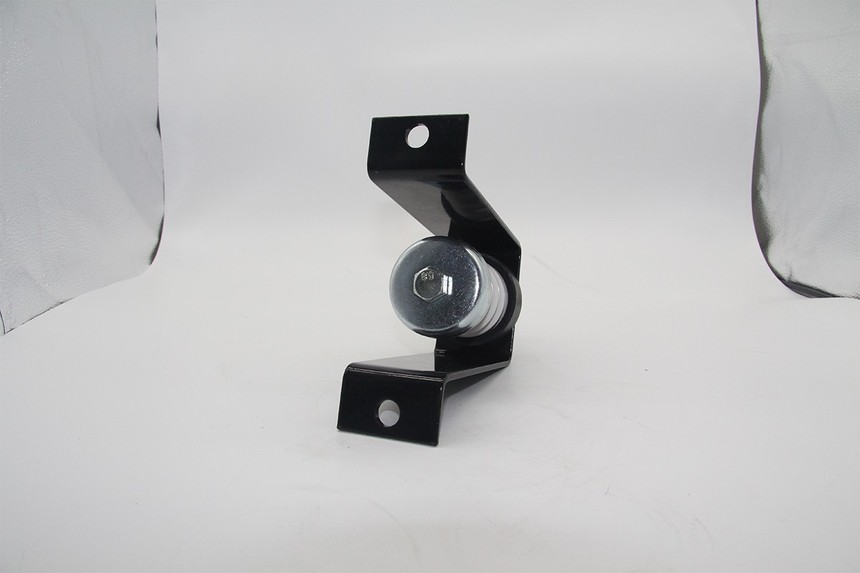

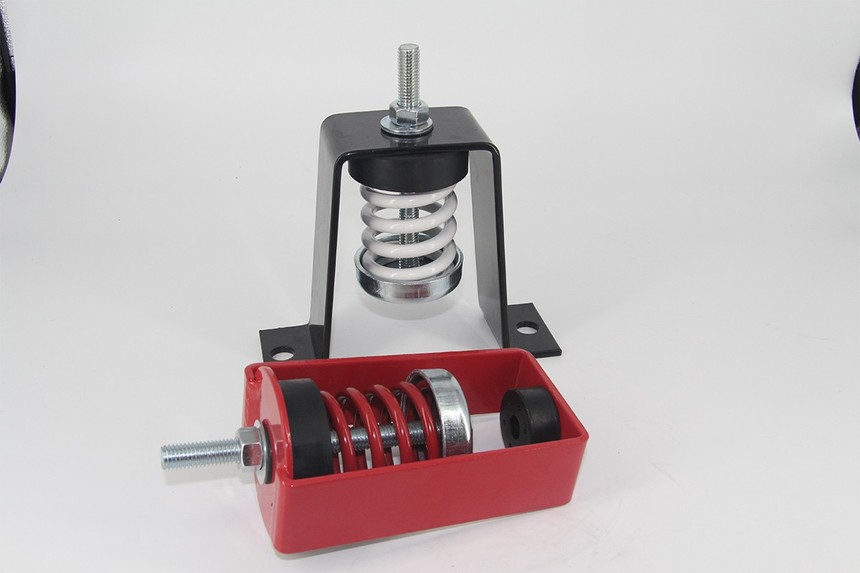

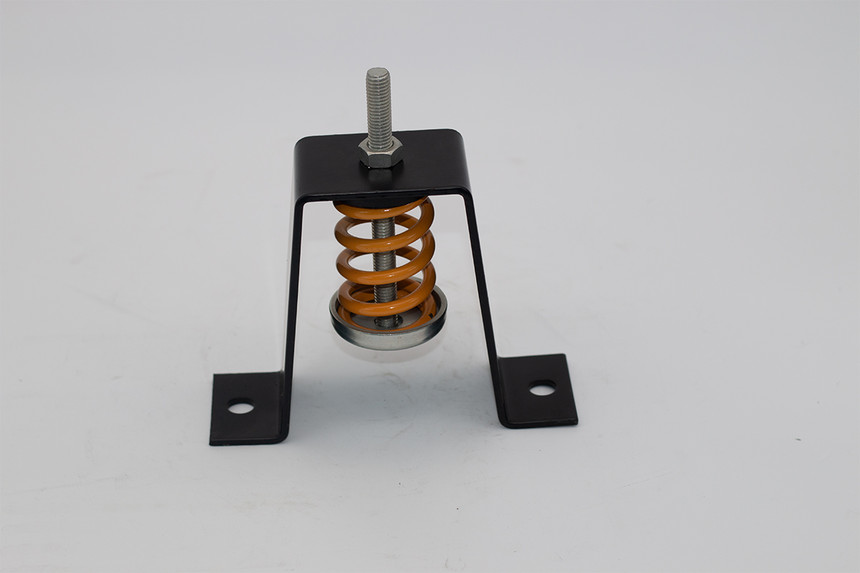

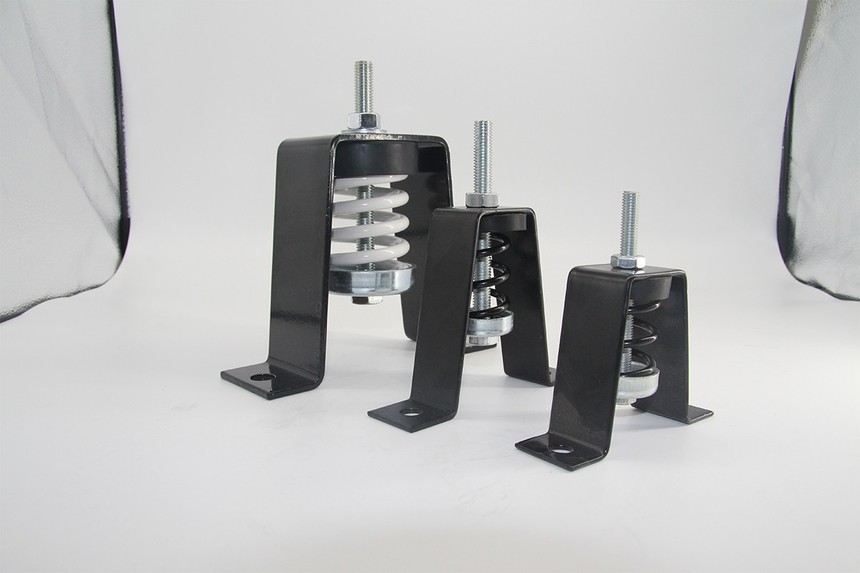

Product Pictures
