JGS rubber Vibration isolator

JGS rubber Vibration isolator is made of metal parts and a rubber body. This product is divided into 3 sizes and 6 specifications. The rated load is 80kg~1200kg, the static deformation under the rated load is 2~12mm, the natural frequency is in the range of 6~11Hz, the damping ratio is greater than 0.6, and the ability to suppress resonance is strong. It can work normally in the temperature range of -6℃~+50℃. This Vibration isolator can isolate and reduce noise and vibration of vibration machinery such as fans, wind cabinets, freezers, water pumps, refrigeration units, etc., with speeds above 800 rpm. Its structure is simple and easy to install. It can be directly installed under the machine base, and it can also be fixed and installed with foundation bolts. It is safe and reliable to use.

Product video

Our services

1. SERVICE TENET: fast, decisive, accurate, thoughtful and thorough.

2. Service goal: Service quality is to win customer satisfaction.

3. Service efficiency: If the equipment fails during the warranty period or outside the warranty period, the supplier after receiving the notice will send professional technical service personnel to the site within 24 hours (48 hours outside the province) if it needs to be resolved on the spot.

4. SERVICE PRINCIPLE: Product Warranty period is 12 months during which we implement "three guarantees"service（return, replacement, maintenance）.

5. The company provides free training and technical guidance services for customers so as to help them have a deeper understanding of our products and thus relieve your worries.

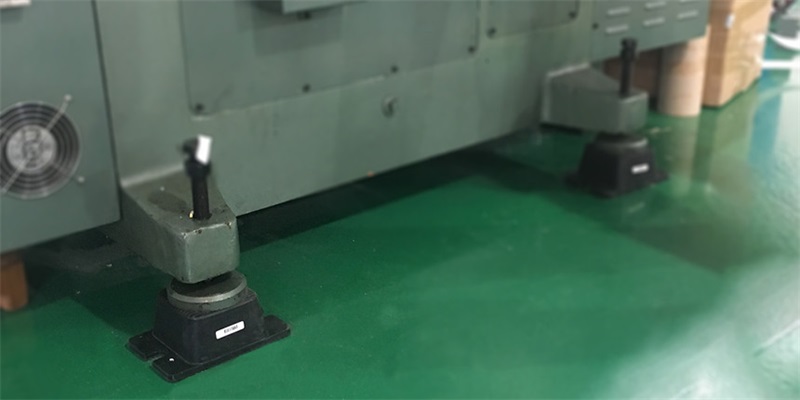

Product Installation

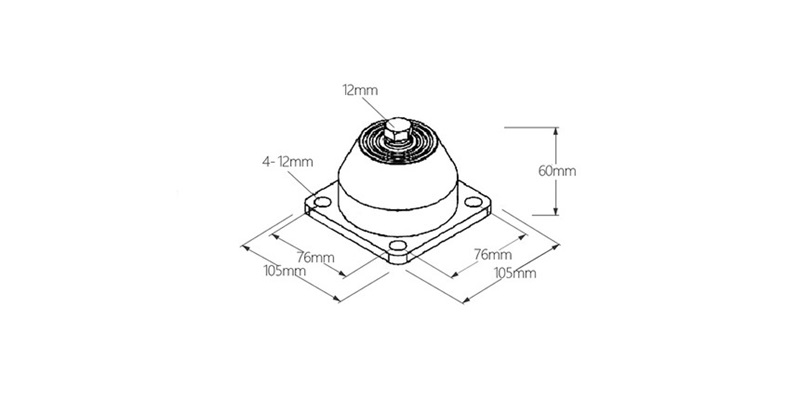

Product Parameters

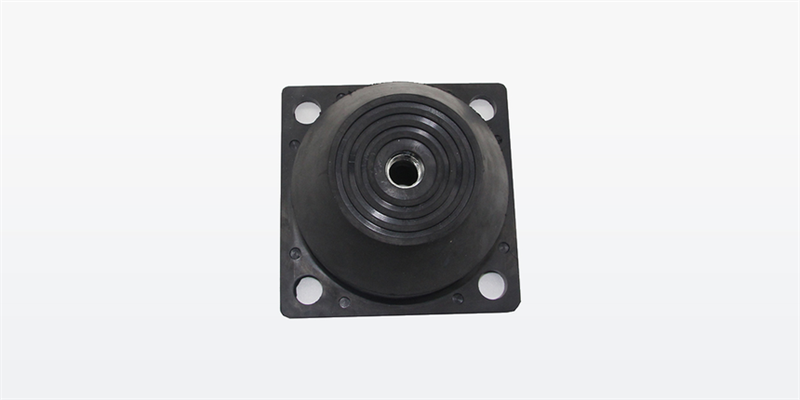

Product Pictures
